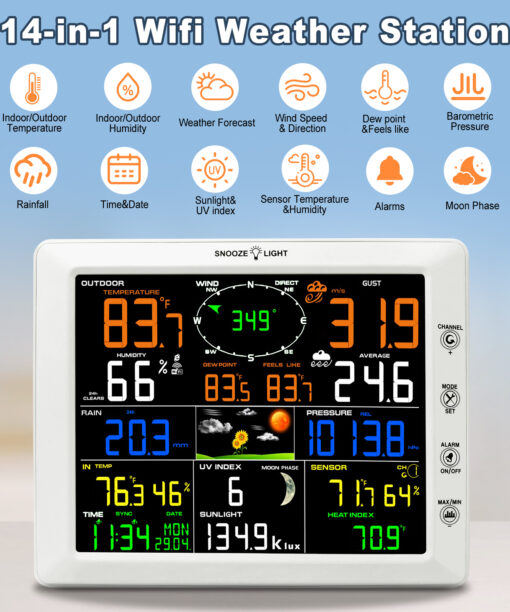

Weather Station Features:
1. Time(12/24) and calendar display:
Time(Internet Sync Time), date, Year, alarm Set (alarm 1 and alarm 2), Snooze
2. Indoor temperature(°C/°F) and humidity – Hi/Lo alarm
3. Integrated outdoor sensor temp(°C/°F) and humidity – Hi/Lo alarm
4. Outdoor dew point, AT and Feels like – Hi/Lo alarm
5. Wind speed and gust display(m/s, km/h, mph, knots bft or ft/s):
Current, 2mins, 10mins – Hi alarm
6. Wind direction icon and data display
7. Weather forecast (Sunny, partly cloudy, Cloudy, Rainy), Moon Phase
8. Barometric Pressure display (mmhg, inHg or hPa.): ABS or REL – Hi Alarm
9. Rainfall data (inch or mm): Rate, 24 hours, week, month, and total – Hi Alarm
10. UV and Sunlight Index Display(W/㎡, fc or lux.) – Hi Alarm
11. Air quality index CO2 level: Green<700ppm, Yellow: 700~1000ppm, Red>1000ppm)-Hi Alarm
12. Display console 3 levels of adjustable backlight
13. Min/Max Records with manually clear or 24hrs automatically clear
14. Manually calibration of in/outdoor temp, humidity, pressure, wind speed, rainfall, sunlight, CO2
15. Solar Power-Solar panel doesn’t charge the battery and it is an auxiliary power supply
16. Integrated Outdoor Sensor Low power indicator
17. Wall hanging or desk freestanding
18. WiFi connection(2.4G Router)
19. Upload real-time weather data to wunderground and weathercloud
Weather Station Specifications:
1. Outdoor temperature range: -40℃ to + 60℃, accuracy: ±0.3ºC
2. Indoor temperature range: 0℃ to + 60℃, accuracy: ±1ºC
3. Indoor Humidity range: 10% to 99%, accuracy: ±5%; Outdoor Humidity range: 1% to 99%, accuracy: ±3%
4. Barometric pressure range: 300 to 1100hpa , accuracy: ±3hpa
5. Rain volume: 0 – 9999mm
1) Resolution : 0.3mm (if rain volume < 1000mm)
2) 1mm (if rain volume > 1000mm)
accuracy: < 15 mm: +/- 1 mm, 15 mm to 9999 mm: +/- 7%
6. Wind speed Range: 0~50m/s
accuracy: 2 m/s ~ 10 m/s (± 0.3 m/s), 10 m/s ~ 50m/s (±10%)
7. Wind direction accuracy: 0 – 360º, accuracy: ± 10º
8. Sunlight index: 0 to 200,000 Lux, accuracy: ± 15%
9. UV index: 1 to 15+, accuracy:± 1 Levels
10. CO2(update time:2s): 400-9999ppm, accuracy: ±(50ppm+5%* data）
11. Integrated Outdoor Sensor transmission interval: 16s
12. Integrated Outdoor Sensor transmission range: 100m in open area (30m under most conditions)
13. Integrated Outdoor Sensor transmission frequency: 433MHz
14. Wifi standard: 802.11 b/g/n
15. Wifi frequency: 2.4GHZ
16. Line of sight of Wifi transmission: 20m
Weather Station Power consumption:
1) Display Console: 3 x AAA 1.5V Alkaline or Lithium batteries (not included)
2) Integrated Outdoor Sensor: 3 x AA 1.5V alkaline batteries or Lithium batteries (not included)
The batteries provide backup power when there is limited solar energy.
3) Power Adaptor: 5.9V/0.5A
Weather Station Dimensions:
Display Console (LxHxW): 193X140X28mm (7.6×5.5×1.1inch)
LCD Dimensions (LxW): 160X93mm (6.3x 3.7inch)
Integrated Outdoor Sensor(FT019T): 330x280x150mm (13x11x5.9 inch)
Weather Station Packages:
1 x Indoor Display Console
1 x Solar Integrated Outdoor Sensor(FT019T)
1 x Mounting Bracket Back Plate
1 x Mounting Pole + 1 x Foot Mounting
1 x English Manual
1 x Power Adapter( Console use only)
Spare parts: Pole mounting nuts and bolts
