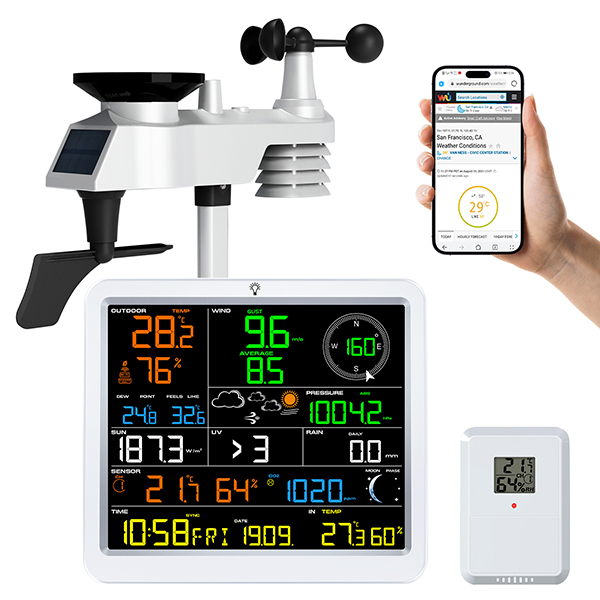

Weather Station Features:
1. Indoor temperature(°C/°F) and humidity
2. Outdoor sensor temp(°C/°F) and humidity
3. Wind speed and gust display(m/s, km/h, mph, knots bft)
4. Wind direction data display
5. Barometric Pressure display (mmhg, inHg or hPa.): ABS or REL
6. Rainfall data (inch or mm): 1h, 24 hours, week, month, and total
7. Manually calibration of in/outdoor temp, humidity, pressure, wind speed, rainfall
8. Solar Power-Solar panel doesn’t charge the battery and it is an auxiliary power supply
9. Outdoor Sensors Low power indicator
10. Wall hanging or desk freestanding
11. WiFi connection(2.4G Router)
12. Upload real-time weather data to HTTP webpage, wunderground and weathercloud
Weather Station Specifications:
1. Outdoor temperature range: -40℃ to + 60℃, accuracy: ±0.1ºC
2. Indoor temperature range: 0℃ to + 60℃, accuracy: ±1ºC
3. Indoor Humidity range: 10% to 99%, accuracy: ±5%; Outdoor Humidity range: 1% to 99%, accuracy: ±3%
4. Barometric pressure range: 300 to 1100hpa , accuracy: ±3hpa
5. Rain volume: 0 – 9999mm
1) Resolution : 0.3mm (if rain volume < 1000mm)
2) 1mm (if rain volume > 1000mm)
accuracy: < 15 mm: +/- 1 mm, 15 mm to 9999 mm: +/- 7%
6. Wind speed Range: 0~50m/s
accuracy: 2 m/s ~ 10 m/s (± 0.3 m/s), 10 m/s ~ 50m/s (±10%)
7. Wind direction accuracy: 0 – 360º, accuracy: ± 10º
8. Outdoor wind sensors transmission interval: 16s;
9. Outdoor wind sensors transmission range: 100m in open area (30m under most conditions)
10. Outdoor wind sensors transmission frequency: 433MHz
11. Rain Gauge, Thermo-Hygrometer Sensor transmission interval: 60s
12. Rain Gauge, Thermo-hygrometer sensor transmission range: 100m in open area (30m under most conditions)
13. Rain Gauge, Thermo-hygrometer sensor transmission frequency: 433MHz
14. Wifi standard: 802.11 b/g/n
15. Wifi frequency: 2.4GHZ
16. Line of sight of Wifi transmission: 20m
Weather Station Power consumption:
1) Wind Sensor: 4xAAA 1.5V alkaline batteries or Lithium batteries (not included)
The wind sensor batteries provide backup power when there is limited solar energy.
2) Rain sensor: 4xAAA 1.5V alkaline batteries or Lithium batteries (not included)
3) Remote Thermo-hygrometer Sensor: 2 x AAA 1.5V Alkaline or Lithium batteries (not included)
4) Base Station Power Adaptor: 5.9V/0.5A
Weather Station Dimensions:
Base Station: 76x72x25mm
Wind Sensor(FT009TW): 214x205mm
Rain sensor: 210x140x140mm
Thermo-hyrometer Sensor: 110x45x21mm
Weather Station Packages:
1 x Indoor Display Console
1 x Wind Sensor(FT009TW)
1 x Wind Sensor Mounting Bracket Back Plate
1 x Wind Sensor Mounting Pole + 1 x Foot Mounting
1 x Rain Gauge(FT009TR)
1 x Thermo-Hygrometer Sensor(FT007TH)
1 x English Manual
